PANASONIC

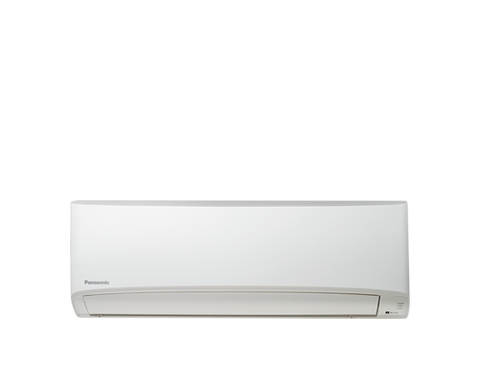

PANASONIC - AC SPLIT STANDARD 1.5PK - CS-YN12
CS-YN12WKJ
| Model | Unit Indoor | CS - YN12WKJ | |
|---|---|---|---|
| Unit Outdoor | CU- YN12WKJ | ||
| Kapasitas Pendinginan | kW | 3,52 | |
| Btu/h | 12,000 | ||
| Konsumsi Daya | W | 1.050 | |
| Tingkat Bintang | « | «««« | |
| EER | Btu/W | 10,73 | |
| Dimensi (Indoor/Outdoor) | Tinggi | mm | 290 (490) |
| Lebar | mm | 799 (650) | |
| Tebal | mm | 209 (230) | |
| Panjang Pipa | (Max) | m | 20 |
| Elevasi Pipa | (Max) | m | 15 |
| Panjang Pipa Tanpa Penambahan Refrigeran | (Max) | m | 7,5 |
| Ukuran Pipa | Cair | mm | Ø 6,35 |
| Inch | 1/4 | ||
| Gas | mm | Ø 12,7 | |
| Inch | 1/2 | ||
