SAMSUNG

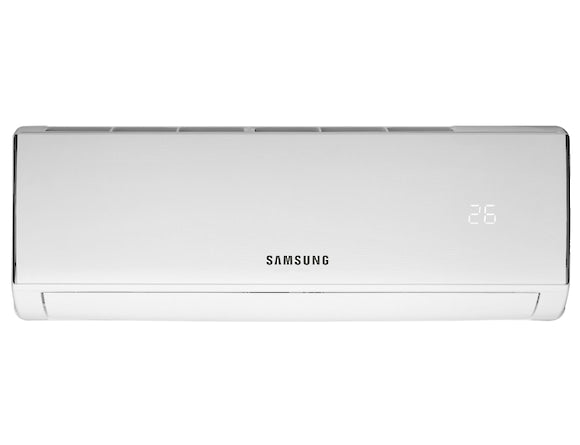

SAMSUNG - AC STANDAR 1PK - AR09NRFLDWKN
-
Capacity
- Capacity (Cooling, Btu/hr)8510 Btu/hr
- Capacity (Cooling, kW)2.5 kW
-
Energy Efficiency
- EER (Cooling, W/W)3.06 W/W
- EER (Cooling, Btu/hW)10.44 Btu/hW
- Energy Star Rating (Cooling)4 Star
-
Noise Level
- Noise Level (Indoor, High/Low, dBA)38/30 dBA
- Noise Level (Outdoor, High/Low, dBA)49 dBA
-
Electrical Data
- Power Source(Φ/V/Hz)1 / 220~240 / 50
- Power Consumption(Cooling, W)815 W
- Operating Current(Cooling, A)3.7 A
-
Spesifikasi Fisik
- Gross Dimension (Indoor, WxHxD, )848×275×315 mm
- Gross Dimension (Outdoor, WxHxD,)705×550×300 mm
- Net Dimension (Indoor, WxHxD,)782x250x196 mm
- Net Dimension (Outdoor, WxHxD,)600×500×232 mm
- Gross Weight (Indoor, kg)9.6 kg
- Gross Weight (Outdoor, kg)26.0 kg
- Net Weight (Indoor, kg)7.8 kg
- Net Weight (Outdoor, kg)24.0 kg
- Loading Quantity (20/40/40Hft without Pipe)153/310/350
-
Technical Information
- Piping Length (Max, m)15 m
- Piping Height (Max, m)5 m
- SVC Valve (Liquid (ODxL))6.35
- SVC Valve (Gas (ODxL))9.52
- Moisture Removal (l/hr)1.0 l/hr
- Air Circulation (Cooling, ㎥/min)7.5 ㎥/min
- Refrigerant (Type)R410A
- Low Ambient (Cooling, ℃)21 ~ 43 ℃
-
Air Flow
- Air Direction Control (Up/Down)Auto
- Air Direction Control (Left/Right)Manual
- Air Flow Control Step (Cool/Fan)3Step
-
Air Purification
- Auto Clean (Self Cleaning)No
-
Convenience
- Smart wifiNo
- Filter Cleaning IndicatiorNo
- Indoor Temp. DisplayYes
- Display On/OffNo
- Beep On/OffNo
- 24-Hour TimerYes
- Auto RestartYes
-
Operating Mode
- Fast CoolYes
- Good SleepYes
- DehumidificationYes
- Fan ModeYes
- QuietNo
